What is Healthcare Data Integration and How Can You Achieve It?

In medicine, time is often the difference between life and death. Fast decisions and accurate diagnoses are critical, especially during emergencies. But one major problem many hospitals face today is unclear and scattered data.

Patient information is often stored in separate systems, lab results in one place, medical history in another, and billing or insurance data elsewhere. This makes it hard for doctors to get a full picture quickly, delaying treatment and putting lives at risk.

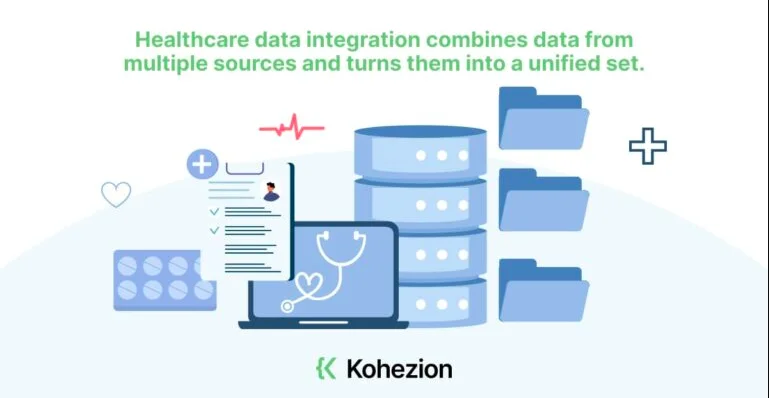

So, how can hospitals manage and access such huge amounts of information? The solution is health data integration. This technology brings all patient-related data from different sources, like medications and test results, to billing, pharmacy, research, and even insurance claims into a single source of truth storage system.

Source: https://www.kohezion.com/

Some modern hospitals are already using this tool and seeing the business view of relevant data sources. It not only improves treatment but also streamlines other operations too. This much of digital transformation in healthcare is helping move beyond just curing illnesses, it’s about creating smarter, faster, and safer care for everyone.

To understand this issue better, the Google Cloud computing team conducted a survey. The results were eye-opening: 96% of physicians agreed that easy access to critical patient data could save not just one life, but millions. This shows us how powerful proper data access can be. Let’s begin by knowing healthcare data integration methods.

Healthcare Data Integration Types Every Provider Should Know

Have you ever asked yourself why some healthcare platforms are simple with a user-friendly interface, while others feel complex and overwhelming? The reason usually comes down to how they integrate data.

Basic systems like appointment scheduling or medication reminders pull information from only a few medical data sources. So, they can use simple integration methods.

But when it comes to complex systems like those used in ICU system monitoring, chronic disease care, or multi-hospital networks, the amount and type of data involved are much greater. These platforms must handle large data volumes of diverse, real-time data, which requires an advanced data integration strategy.

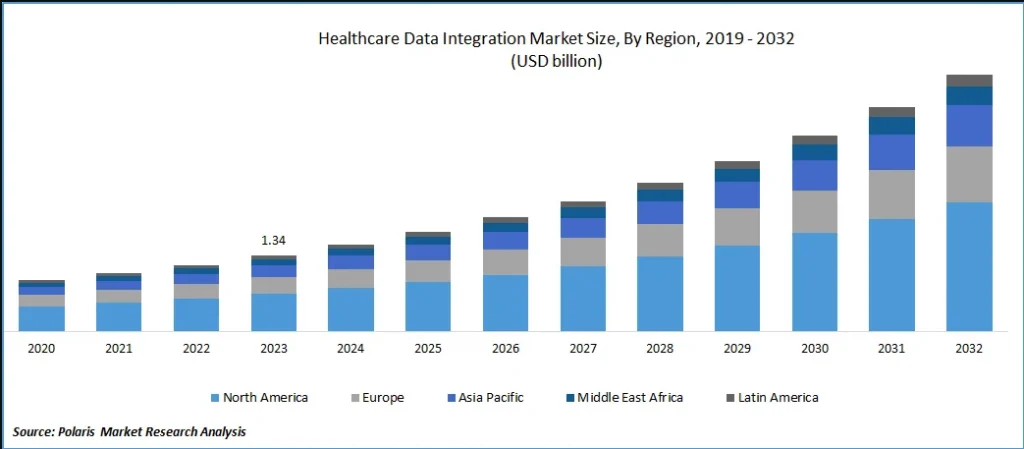

Ever wonder about the size of the market for all the smart uses we’re making of health information? Well, in  2024, it was already $44.8 billion globally! And that is just the starting point. Soon, this market will be growing and reaching anywhere between $133  billion by 2029.

Source: https://www.polarismarketresearch.com/

Choosing the right method of integration isn’t just a technical decision. It can make the difference between average service and life-saving care. Let’s say

If your departments use different medical terms and struggle to understand each other’s data, semantic integration is the solution. It standardizes terminology using systems like ICD and SNOMED so everyone speaks the same medical language, ensuring clarity and better decision-making.

If you’re part of a hospital group that wants to share data without centralizing it, go for federated integration. It lets each hospital keep control of its data entry while securely sharing selected information in real time with others.

For emergency rooms or critical care units where every second counts, real-time integration is key. It instantly updates and shares patient data across systems, helping medical teams respond quickly with the latest information.

If you’re expanding or want access to data from anywhere without heavy IT costs, choose cloud-based systems to communicate. It connects systems via the cloud, enabling easy scaling, remote access, and smoother collaboration.

And if your systems, like EHR technology, lab software, and pharmacy tools don’t talk to each other, middleware integration is what you need. It acts as a translator, connecting different software programs for a seamless, efficient workflow. Get to know what integration means in healthcare by the WHO’s concept.

How are Integrated Health Services Framed by the WHO?

The World Health Organization (WHO) defines Integrated Health Services as a people-focused model that puts the needs of individuals and communities first. Rather than having to move between discrete clinics and departments, patients undergo unbroken, coordinated care throughout prevention, diagnosis, treatment, rehabilitation, and follow-up.

This integration links all patient information, medical history, test results, and treatments, allowing healthcare for quicker, better-informed decisions by healthcare professionals. For patients, it translates into fewer delays, customized care, and improved health outcomes.

A study published in The Lancet reveals that models of integrated care can reduce hospital admissions and improve outcomes for chronic diseases. They benefit clinicians as well, with efficient workflows, less duplication, and greater teamwork. Clinical staff indicate that integrated data systems make decision-making better and ease administrative burdens in their clinical trials.

Integrated care lies at the heart of delivering Universal Health Coverage (UHC), a prime WHO objective. Integrated care fortifies health systems, improves access, and facilitates smarter, safer, and more sustainable care, which takes the world closer to universal health for all. Here are the steps to have effective healthcare data integration.

What are the Steps to Achieving Effective Healthcare Data Integration?

Before diving into technical work, clearly define what you want to achieve with data integration in healthcare. Are you aiming to

Improve patient care coordination?

Enable real-time data sharing between departments or external providers?

Meet compliance standards?

Knowing your objectives will guide your choice of technologies, standards, and integration methods. These goals also help align IT and clinical stakeholders, set timelines, and allocate resources effectively. Well-defined goals avoid scope creep and ensure measurable results. So, what’s the next step? Read on.

1. Identify and Catalog Healthcare Data Sources

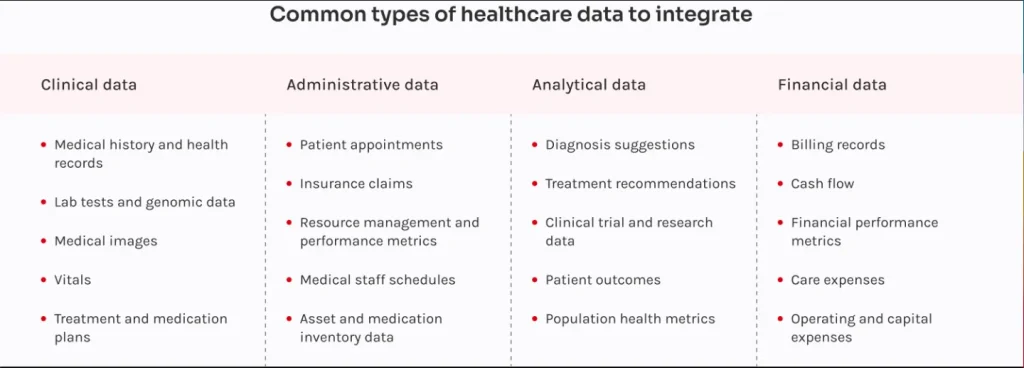

Healthcare organizations typically store data in various systems, such as

Electronic Health Records

Laboratory Information Systems

Radiology Information Systems

Pharmacy management platforms

Wearable devices and remote monitoring tools

Source: https://innowise.com/

Make an accurate inventory of all the involved systems, with indication of data formats used, such as XML, APIs like RESTful or SOAP, and methods of connectivity, including direct database, file transfer, and secure web services that are employed. Frequencies of real-time updates should also be documented in preparation for synchronization planning.

2. Design a Scalable Data Architecture

Your data architecture must support interoperability, scalability, incremental loads, and security. Common architectures include

Point-to-point systems are straightforward but become complex as the number of connections grows, making scalability a challenge.

Hub-and-spoke architectures use a central engine to manage and monitor interactions, offering better scalability and streamlined control.

Enterprise Service Bus is scalable for complex networks needing routing, transformation, and orchestration

Consider cloud-native, cloud-lake, API-driven microservices for flexible integration in modern environments.

3. Implement a Health Integration Engine

A healthcare integration engine acts as middleware for the management of healthcare data, digital transformation, and routing. Popular solutions include

Mirth Connect

Rhapsody

InterSystems Ensemble

Orion Health

These platforms support HL7, FHIR, and provide features like real-time routing, data transformation, and monitoring, simplifying integration.

4. Ensure Data Mapping and Normalization

Different systems may use labels for the same data, such as BP versus Blood Pressure. Data mapping helps convert these values between systems, with integration tools automating the process to ensure consistency and accuracy.

Normalization involves converting data to a common format, such as converting all temperature values to Celsius, so it is consistent across systems and usable in valuable insights or decision-making tools. Establishing a master data dictionary or using terminology services helps streamline normalization.

5. Focus on Interoperability

True interoperability goes beyond data exchange and ensures systems can understand and use the data meaningfully. Use FHIR APIs to support semantic interoperability and make sure your systems adhere to

Terminology standards such as SNOMED CT, LOINC, and ICD-10

RxNorm for medication Coding systems

This ensures that clinical data maintains its meaning across platforms. Interoperability supports decision support tools, population health analytics, and coordinated care delivery.

6. Secure Data Transmission and Access

Healthcare data is highly sensitive and must comply with regulations like HIPAA in the United States or GDPR in Europe.

Always perform risk assessments and penetration testing before going live. Implement data security incident response plans to detect and respond to breaches or vulnerabilities. Want to know what the must-have technologies are?

Essential Technologies Behind Healthcare Data Integration

Every healthcare system relies on a strong tech infrastructure to ensure smooth data integration. These technologies handle everything from organized EHR data to unstructured sensor data, making sure the right information reaches the right person at the right time. Let’s take a look at the most important ones.

1. Extract, Transform, Load

ETL collects data from multiple sources, like patient records or billing systems, and prepares it for analysis by cleaning and organizing it before storing it in a database. It’s best for structured data where high accuracy is needed for reports, analytics, and clinical decisions.

2. Extract, Load, Transform

ELT pulls raw data and loads it into target destinations first, then processes and organizes it within the system for further use. It handles a large volume of healthcare data, like patient monitoring or medical images, with better speed, flexibility, and scalability.

3. Data Warehouses

A data warehouse stores clean, structured data like patient records, insurance, and billing info. Healthcare teams use them for reports, trends, and smart decisions to improve care quality and operations.

4. Data Lakes

Data lakes store raw, unstructured data such as images, wearables, and notes. They’re ideal for deep analysis, AI, and research, offering more freedom to work with complex healthcare data.

5. Enterprise Data Replication

This process keeps patient data updated across different systems, either in real time or at scheduled intervals. EDR data consolidation ensures consistency and reduces errors, helping providers access the same information wherever and whenever it’s needed for coordinated care.

6. Application Programming Interfaces

APIs let healthcare systems work together smoothly, so updates like scan results or medications can be shared. For example, a hospital can send the patient’s allergy list info directly to the pharmacy. APIs streamline system communication and, at the same time, improve the quality of patient care.

7. Data Visualization Tools

Data visualization helps providers analyze patient data quickly, identifying trends and risks. This enables them to make informed, timely treatment decisions. They help healthcare staff quickly understand trends, monitor resources, and make informed choices. Technology integration always comes with certain challenges. What are they? Scroll on.

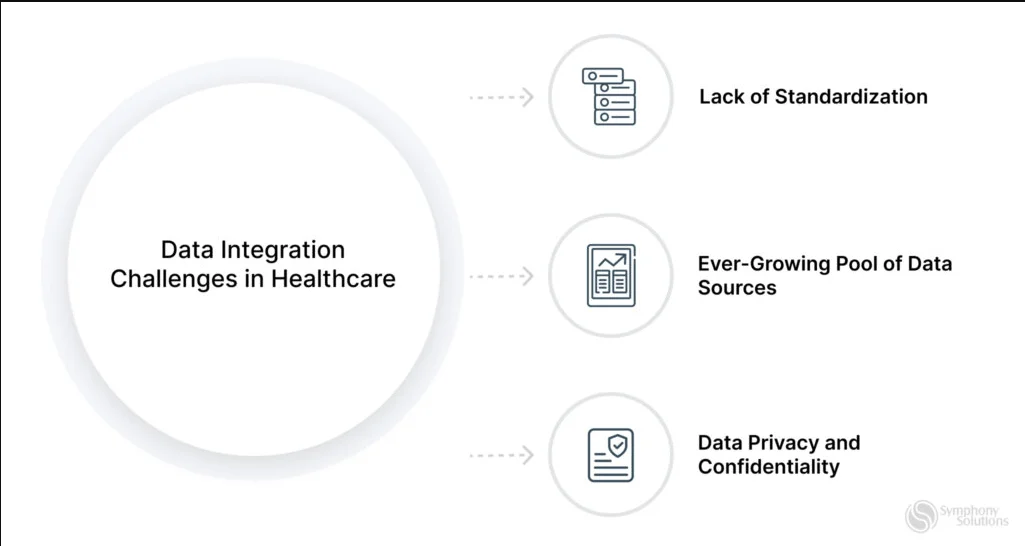

Data Integration Challenges in Healthcare That Hold You Back

Healthcare is producing more data than ever before, spiking from 153 exabytes in 2013 to more than 2,314 exabytes in 2020. But with it comes huge problems. More than 133 million patient records have been breached in 725 data breaches in the past 14 years, illustrating how exposed and disjointed healthcare systems remain.

The issue extends beyond security, outdated systems, data silos, high variety, and unskilled labors all leaving a query data challenging.

#1 Outdated Systems

Even though technology has improved a lot, many healthcare facilities still use old systems that don’t work well with new tools. These legacy systems are expensive to upgrade, take a lot of time to replace, and are problematic for day-to-day operation. This hinders standardized data integration very difficult.

#2 Data Silos and Lack of Interoperability

Some healthcare organizations store data in separate systems leading to “data silos.”  As a result, these systems sometimes don’t communicate with each other, and getting a complete picture of a patient’s health can be limited. This lack of interoperability can cause missing information, errors, and inefficiency in processes.

#3 Lack of Standardization

Healthcare data pool can either be in unstructured or structured data formats and interfaces sometimes use different terminologies and formatting too. Lack of standardization makes it hard to integrate this information smoothly, causing compatibility issues between systems.

Source: https://symphony-solutions.com/

#4 High Implementation Complexity

The entire velocity of data integration is complicated as it needs regular updates and ensures all platforms work compatibly with one another. For smaller organizations, scaling may be too daunting, while for larger ones, the major hurdle comes from interdepartmental coordination.

#5 Technical Skill Gaps

Furthermore, implementing the integration of multiple healthcare data successfully requires specialized technical skills. These skills, however, tend to be lacking among smaller organizations, which then puts more strain on those involved and often results in operational problems, delays, or outright failure of integration initiatives.

Do you know why we should consider value-based care? If not, then it’s time to know what it is and how it supports value-based care.

How Healthcare Data Integration Supports Value-Based Care?

Value-based care means focusing on better health results for patients while also keeping healthcare costs under control. Instead of being paid for the number of tests or treatments they give, doctors and hospitals are rewarded for the quality of care they provide. To do this well, healthcare providers need full, real-time,  accurate, and seamless data for each patient.

Source: https://www.appverticals.com/

Health data integration makes this possible by bringing together information from many sources, like electronic health records, lab results, pharmacies, imaging centers, insurance claims, and even remote monitoring medical devices such as wearable health trackers. When all this information is combined into one system, it gives doctors a full picture of a patient’s health history.

1. Integrated diabetes care has led to improvement in blood sugar control.

2. When all care team members share the same data, they can avoid duplicate records, tests, or treatments.

3. Track how well they are doing.

4. Prove they meet the rules and regulations.

5. Make sure treatments match medical guidelines and payment models that reward results.

6. Lower operational budgets of up to 30% in some systems, and more efficient healthcare.

Before integrating, there are some rules and regulations you should know so that you meet them when integrating data.

Key Standards and Compliance Requirements for Healthcare Data Integration

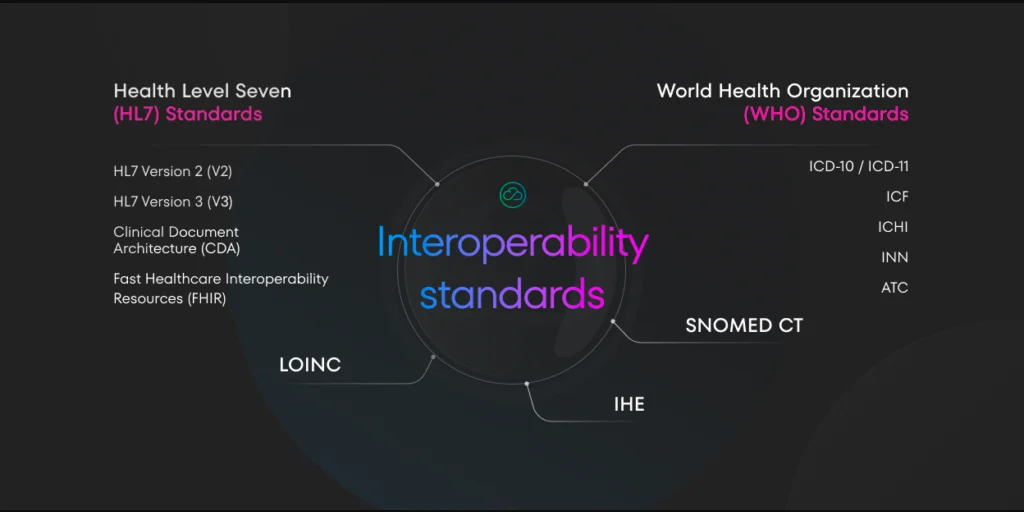

Healthcare data integration systems have to comply with stringent standards and compliance frameworks to maintain high-quality data, privacy, interoperability, and security.

Health Level Seven(HL7), a popular international standard widely used that allows systems to share clinical and administrative data.

Fast Healthcare Interoperability Resources(FHIR), an updated version of the HL7 standard, which utilizes APIs to facilitate data sharing between systems. So, it is crucial for app-based and cloud-enabled healthcare platforms.

For diagnosis and imaging, Digital Imaging and Communications in Medicine(DICOM) provides standard formats for transmitting and storing medical images. For example, ICD-10 and LOINC are significant for coding lab results and diagnoses consistently.

Source: https://nubisoft.io/blog/

On the compliance front, the Health Insurance Portability and Accountability Act(HIPAA) is essential in the United States; it requires the data protection and confidential management of patient health information.

For software that is considered a medical device, FDA regulations and IEC 62304 standards can come into play, demanding strict documentation, testing, and quality controls.

Worldwide, GDPR is used when handling patients from the European Union, and it focuses on consent, data minimization, and user rights.  Hope you learn about health data integration, you might be thinking, Is my investment worth it? Here is your answer

Is Health Data Integration Worth the Investment?

Yes, and here’s why. Healthcare professionals and administrators should consider both the cost as well as the potential returns when talking about the implementation of healthcare data integration.

Suppose a mid-sized healthcare organization invests $150,000 for three years. This amount would also cover costs for software, hardware, EHR vendors’ fees, staff training, and future maintenance. Although the price may appear somewhat hefty initially, the benefits can be greater than they plan.

Integration allows for enhanced billing accuracy, a reduction in the duplication of diagnostic tests, faster workflows, improved coordination, better patient outcomes, large-scale batch integrations, and more. These clinical and operational improvements can result in an estimated return of $300,000 during the same timeframe.

This means the organization could save or gain roughly $150,000 through administrative overhead reduction, quicker reimbursements from insurance, patient retention, and lower readmission rates of the hospital. Health data integration is not only a technological improvement; it is a smart and business intelligence strategy that returns real value.
